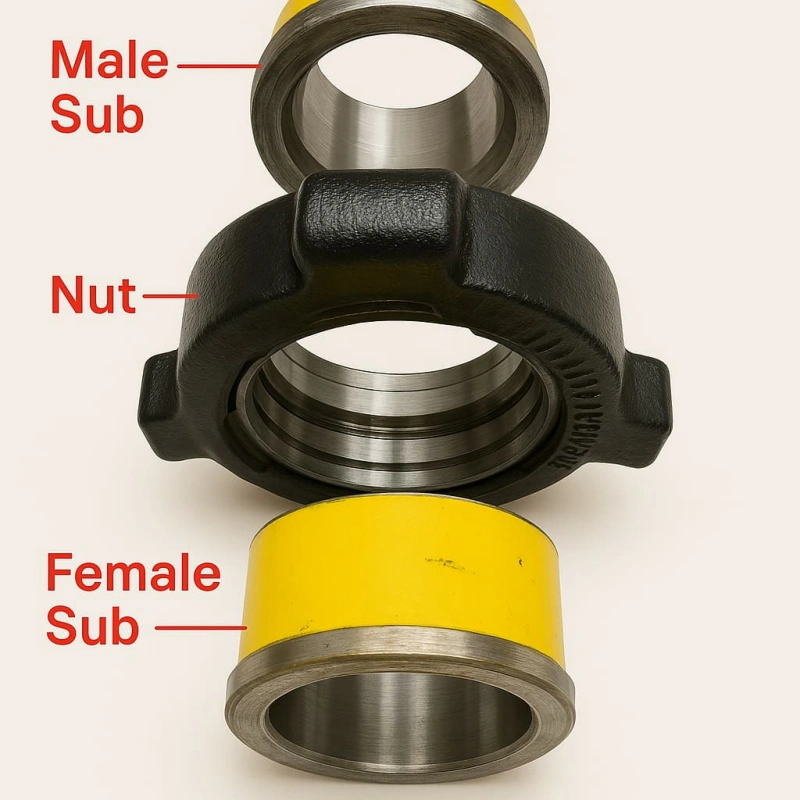

You can quickly identify the hammer union male and female parts by examining their shape: the male sub features an external spherical surface, while the female sub has an internal threaded cavity.
Correct identification of hammer union male and female components ensures safe and compatible connections in oilfield operations. API’s Specification 7HU2 sets strict standards to prevent mismatching and reduce leaks or failures.
Alienfrac, a leader in high-pressure oilfield connectors, delivers products that meet industry certifications:
| Certification | Description |
|---|---|
| API 7K | Drilling and well servicing equipment |
| API 16C | Choke and kill systems |
| API Q1 | Quality management system |
Key Takeaways
- Identify hammer union parts by checking the male sub’s spherical surface and the female sub’s internal threads. This ensures safe and reliable connections.
- Use clear naming conventions in the field: refer to the male part as ‘the half with the nut’ and the female part as ‘the half with the external thread’ to avoid confusion.
- Always verify color codes and figure numbers on both halves of the union. Matching these markings prevents mismatches and enhances safety during high-pressure operations.
- Inspect the hammer nut and seal ring regularly. Proper maintenance extends the lifespan of your hammer union and prevents leaks in high-pressure environments.
- Avoid mixing components from different manufacturers. Each has unique designs that can lead to leaks or failures if mismatched.
Hammer Union Male and Female Identification
Visual and Thread Differences
You can distinguish hammer union male and female parts by looking at their physical features. The male sub has a rounded, external ball-shaped surface. This part fits into the female sub during assembly. The female sub contains an internal threaded cavity.
You will see the threads inside the opening, which allows the male sub to seat securely.
When you hold a hammer union, check the ends. The male sub always presents a smooth, spherical surface. The female sub always shows internal threads. This difference helps you avoid confusion during installation.
You should also notice that the male sub usually connects to the hammer nut. The nut allows you to tighten or loosen the union quickly with a hammer.
Alienfrac designs each hammer union for easy identification. The precision-machined surfaces and clear markings help you spot the male and female parts even in low-light or harsh oilfield conditions. You can trust these features to reduce mistakes and improve safety.
Naming and Field Terms

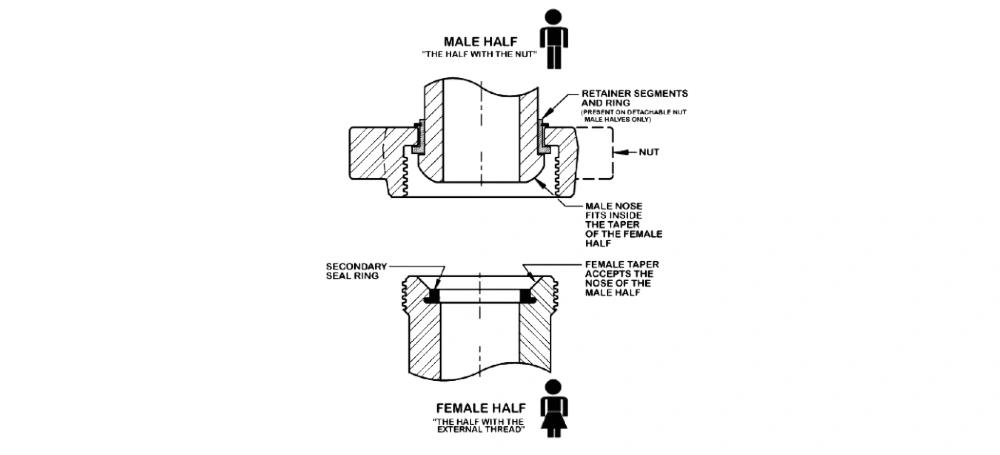

In the field, you will hear specific terms for hammer union male and female parts. Workers often use these names to speed up communication and avoid errors. You should know these common terms:
- The male half is called “the half with the nut.”
- The female half is called “the half with the external thread.”
These terms match the physical features you see on each union. When you ask for the male half, you refer to the part with the nut attached. When you request the female half, you mean the part with the visible external thread. This naming system helps you and your team assemble hammer unions correctly and safely.
You will find that using the right terms and checking the visual differences prevents mismatches. This practice keeps your connections secure and your operations efficient. Alienfrac supports these industry standards by providing clear markings and robust construction on every hammer union male and female part.
Hammer Union Parts Breakdown
Male Sub Features
You will find that the male end of a hammer union stands out due to its robust construction and precise design. Manufacturers use high-grade steel or alloy, such as AISI 4130, for the male end. This choice gives the part excellent durability and corrosion resistance, which is essential for high-pressure piping.
The male end features a rounded, external ball-shaped surface that fits into the female sub. You will notice clear color coding on the male end, which helps you quickly identify the pressure rating. Some unions also have unique markings for sour gas service.
These features make it easy to spot the male end, even in tough field conditions.
- High-grade steel or alloy construction
- Color-coded for pressure rating
- Unique markings for special service
- Spherical surface for secure fit
Alienfrac hammer union parts use these materials and markings to ensure you get reliable performance in high-pressure piping environments.
Female Sub Features
The female end of a hammer union has its own set of features that support safe and efficient connections. You will see internal threads inside the female sub, which allow the male end to seat securely.
The female end also includes an integrated sealing mechanism, often with a lip-type seal ring, to prevent leaks under high pressure. Manufacturers use high-strength steel or forged alloy steel for the female end. This material resists wear and corrosion, maintaining the integrity of the union in harsh conditions.
| Feature | Male End | Female End |
|---|---|---|
| Thread Type | Male thread or butt weld end | Female thread or butt weld end |
| Sealing Mechanism | None specified | Integrated sealing mechanism |
| High Pressure Seal | Not specified | Lip-type seal ring for primary seal |
| Material Type | Benefit |
|---|---|
| High-strength steel | Resists wear and corrosion |
| Forged alloy steel | Maintains integrity under pressure |
| Sealing mechanisms | Protects against leaks and turbulence |
Alienfrac hammer union parts use these advanced materials and sealing features to deliver long-lasting performance in high-pressure piping systems.
Hammer Nut and Seal Ring
The hammer nut and seal ring are critical parts of the hammer union assembly. You use the hammer nut to compress the seal assembly, which includes a small seal such as an O-ring or hammer union seal. This compression creates a leak-proof connection between the pipe ends.
The seal assembly prevents leakage, even in high-pressure piping environments.
- Hammer nut compresses the seal assembly
- Ensures a leak-proof connection
- Seal assembly prevents leaks under pressure
Alienfrac hammer union hammer nuts and seal rings offer a longer operational lifespan compared to industry averages. You can expect over 460 hours of service, which is about 35% longer than standard unions. This durability means you spend less time on maintenance and more time on safe, efficient operations.
Tip: Always check the condition of the hammer nut and seal ring before assembly. Proper inspection helps you maintain the integrity of your hammer union parts and ensures safety in high-pressure piping applications.
Key Differences and Common Mistakes
Connection and Assembly
You must pay close attention to the way you assemble hammer union connections. The male and female parts have unique seating geometries. Misalignment during assembly can cause leaks or damage. You need to apply the correct torque to the union.
Too much force can damage the threads or the sealing surfaces. Too little force can leave the connections loose. You should never mix components from different manufacturers. Each hammer union has specific cone angles and seat radii. Mismatched parts often fail to seat properly.
Ninety percent of failures in oil and gas operations result from mismatched halves. Leaks and pressure test failures are common when you select a union based only on appearance or price.
- Misalignment leads to leaks or damage.
- Incorrect torque causes loose joints or component damage.
- Mixing manufacturers results in incompatible seating geometries.
Tip: Always check the manufacturer’s markings before assembling hammer union connections. This practice helps you avoid costly mistakes and ensures safe oil and gas operations.
Markings and Color Codes
You will find that every hammer union uses markings and color codes to indicate pressure ratings and compatibility. Alienfrac unions feature clear color bands and stamped figures. These markings help you identify the correct union for your oil and gas operations.
You must match the color codes and figure numbers on both halves. This step prevents mismatches and ensures reliable connections. The table below shows common color codes:
You should always verify these markings before connecting union parts. This habit reduces exposure to injuries and lowers costs related to equipment replacement and workman’s compensation claims.
Field Identification Errors
You may encounter several errors when identifying hammer union parts in the field. Workers sometimes confuse the male and female ends, especially when unions appear similar. Variations in seat radii and cone angles across manufacturers increase the risk of mismatches.
Ninety percent of connection failures in oil and gas operations trace back to mismatched halves. You must avoid selecting a union based only on price or appearance. This mistake leads to leaks, pressure test failures, and higher costs.
You should always inspect the markings, color codes, and seating geometry before making connections.
- Confusing male and female ends causes mismatches.
- Ignoring seat radii and cone angles leads to leaks.
- Selecting unions by price or appearance increases failure rates.
Note: Proper identification and assembly of hammer union connections protect your oil and gas operations from costly downtime and safety hazards.
Practical Guide with Alienfrac Hammer Union
Step-by-Step Identification
You need a clear process to identify each part of a hammer union in the field. Alienfrac hammer union products feature distinct markings and color codes that simplify this task. Follow this checklist to ensure you select the correct union for high-pressure connections:
- Inspect the female end for internal threads. The female end always contains these threads, which allow the male sub to seat securely.
- Check the male sub for a spherical surface. This surface fits into the female end during assembly.
- Locate the hammer nut. The nut connects to the male sub and enables you to tighten or loosen the union.
- Verify color codes and figure numbers. Alienfrac hammer union products display clear color bands and stamped figures. Match these codes on both halves to confirm compatibility for high-pressure connections.
- Examine the seal ring. The female end includes an integrated sealing mechanism, often a lip-type seal ring, which prevents leaks in high-pressure connections.
- Confirm manufacturer markings. Alienfrac hammer union parts feature precise markings that help you avoid mismatches.
Tip: Always use this checklist before assembling high-pressure connections. You reduce the risk of leaks and improve operational safety.
Safety and Maintenance Tips
You maintain the reliability of high-pressure connections by following proper safety and maintenance routines. Alienfrac hammer union products require regular inspection and care to maximize their lifespan and ensure safe operation. Consider these best practices:
- Clean the female end and male sub before each use. Dirt or debris can compromise the seal and cause leaks in high-pressure connections.
- Inspect the seal ring inside the female end. Replace worn or damaged rings to maintain a leak-proof union.
- Check color codes and figure numbers on every union. This step prevents mismatches and ensures compatibility for high-pressure connections.
- Apply the correct torque when tightening the hammer nut. Over-tightening can damage threads, while under-tightening leaves the union loose.
- Schedule regular maintenance checks. Timely interventions and routine inspections extend the lifespan of Alienfrac hammer union products and prevent costly downtime.
- Upgrade maintenance protocols as new Alienfrac hammer union models become available. Enhanced routines improve performance and field safety.
Note: Consistent maintenance practices keep your high-pressure connections secure. You protect your equipment and reduce operational risks by caring for each union and inspecting the female end regularly.
Conclusion
You can identify each hammer union part by checking the male sub’s spherical surface and the female sub’s internal threads. This process keeps every union in your oil operations safe and reliable.
Choosing Alienfrac hammer union products gives you a clear advantage in oil field safety and efficiency. The table below shows how Alienfrac stands out in oil applications:
| Feature | Alienfrac Hammer Unions | Generic Alternatives |
|---|---|---|
| Durability | Superior durability | Varies |
| Leak-proof Performance | Maintains a secure seal under extreme pressure | May not guarantee leak-proof |
| Compliance | Meets API 7K and API 16C standards | Often lacks certification |
| Safety Features | Hands-free wrenches reduce injury risk | Manual hammering increases risk |
- Alienfrac hammer union products use advanced engineering for oil field demands.
- Each union passes a 100% hydrostatic pressure test before leaving the factory.
Apply these practical tips in your oil operations. For expert support, reach out to Alienfrac and keep your oil connections secure.
FAQ
What is the main difference between a hammer union coupling and a standard union?
You will notice that a hammer union coupling uses a hammer nut for quick assembly. A standard union relies on threaded connections. Hammer union coupling provides faster installation and removal, which improves efficiency in oilfield operations.
How do you identify the male and female parts of a union coupling?
You can spot the male part by its spherical surface. The female part has internal threads. When you assemble a union coupling, always check these features to ensure a secure fit and prevent leaks.
Why is color coding important for union coupling selection?
Color coding helps you match the correct union coupling for pressure ratings. You avoid mismatches by checking color bands and figure numbers. This practice keeps your connections safe and reliable during high-pressure operations.
Can you mix different brands of union coupling in one assembly?
You should never mix brands in a union coupling assembly. Each manufacturer designs unique seat radii and cone angles. Mixing brands increases the risk of leaks and failures. Always use matching union coupling parts for best performance.
How often should you inspect a union coupling for maintenance?
You need to inspect each union coupling before every use. Look for worn seal rings, damaged threads, and debris. Regular checks extend the lifespan of your union coupling and maintain safety in oilfield environments.
