You need a drilling hose that can handle high pressure and keep your oilfield running safely. Rotary drilling hoses move drilling mud between pumps and rigs, making sure your equipment stays protected. If you do not choose the right hose, serious safety risks can occur:
- Workers face dangers from heavy equipment and moving machinery.
- High pressure can cause hoses to burst, sending fluids or gases everywhere.
- Sudden valve openings can release energy that leads to injury or damage.
You can trust Alienfrac to deliver hoses that meet the highest safety standards.
Key Takeaways
- Choose the right rotary drilling hose to ensure safety and efficiency in oilfield operations.
- Understand the structure and materials of drilling hoses to select one that withstands high pressure and harsh conditions.
- Regularly inspect drilling hoses to prevent leaks and ensure reliable performance during operations.
- Select hoses with appropriate pressure grades and end fittings to match your specific drilling equipment.
- Trust certified manufacturers like Alienfrac for high-quality hoses that meet industry standards and enhance operational success.
Rotary Drilling Hose Overview
What Is A Drilling Hose?

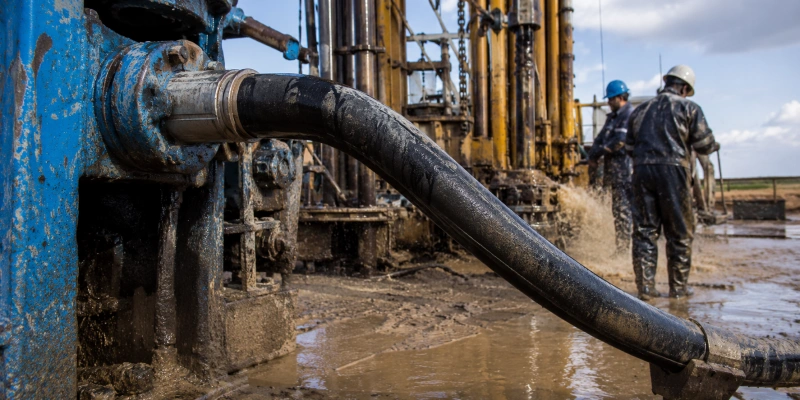

You rely on rotary drilling hoses to keep your oilfield operations running smoothly. A rotary drilling hose is a flexible, high-pressure hose that connects the standpipe to the rotary swivel on a drilling rig. This hose allows drilling fluid to move efficiently while the drill string rotates.

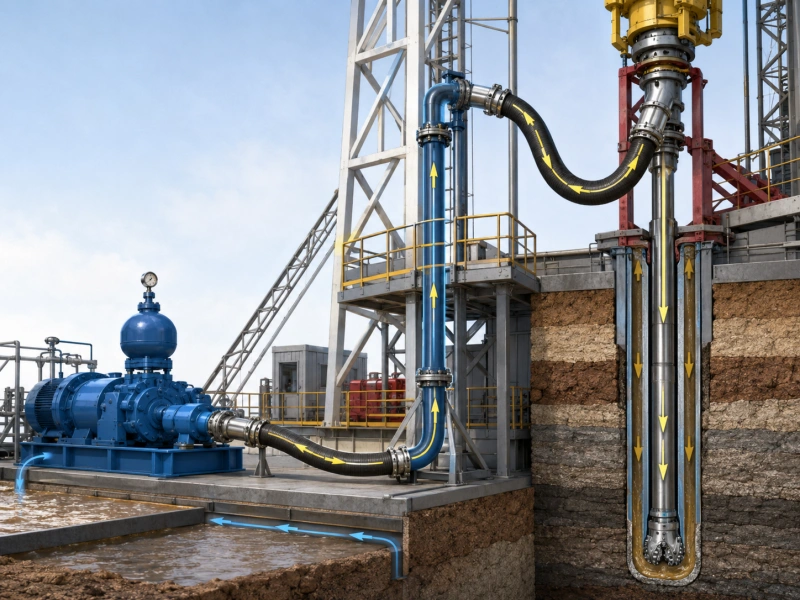

Rotary drilling hoses play a vital role in the drilling fluid circulation system, helping you maintain stable pressure and protect your equipment from damage. When you choose a quality rotary drilling hose, you ensure safe and efficient drilling performance.
Alienfrac stands out as a leading manufacturer of rotary drilling hoses. The company uses advanced technology and strict quality control to deliver hoses that meet the highest industry standards.
You benefit from their commitment to innovation and reliability, which helps you achieve better results in demanding oilfield environments.
Main Functions In Oilfield Operations
Rotary drilling hoses serve several essential functions in oilfield drilling. You use these hoses to transfer drilling mud from the mud pump to the drill string, allowing the drilling process to continue without interruption. Rotary drilling hoses also absorb vibration and movement, reducing stress on your equipment.

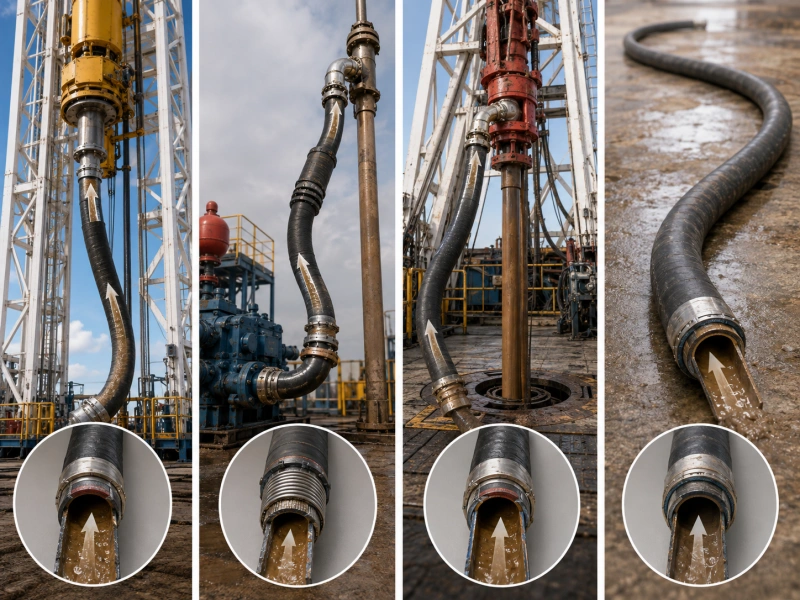

The table below highlights how rotary drilling hoses compare to other hose types in drilling systems:
| Hose Type | Function | Connection Type |
|---|---|---|
| Rotary hose | Transfers drilling fluid while allowing the drill string to rotate. | Standpipe to rotary swivel |
| Kelly hose | Transfers high-pressure fluid from mud pumps to the drill string. | Standpipe to swivel |
By using rotary drilling hoses, you improve safety, efficiency, and equipment lifespan during drilling operations.
Alternative Names And Types
In the oilfield industry, you may hear rotary drilling hoses called by different names. Some common alternatives include oilfield drilling hose and rotary hose. Rotary drilling hoses come in several classifications based on pressure grades, such as Grade A, B, C, D, and E. The table below summarizes these alternative names and classifications:
| Alternative Names | Classifications |
|---|---|
| Oilfield drilling hose | Grade A |
| Rotary drilling hose | Grade B |
| Grade C | |
| Grade D | |
| Grade E |
You can select the right rotary drilling hose for your specific drilling needs by understanding these names and grades. Alienfrac offers a full range of rotary drilling hoses to match every oilfield application.
Drilling Hose Structure And Materials
When you select a drilling hose for oilfield operations, you need to understand its structure and the materials that make it reliable. Alienfrac designs each hose with a multi-layered approach, using high-quality synthetic rubber and advanced reinforcement to ensure safety and performance.

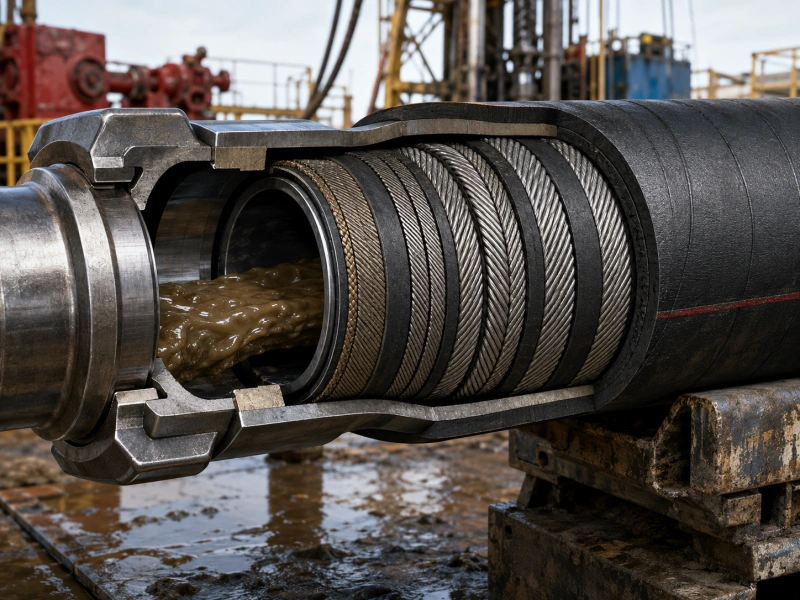

Layered Construction
You benefit from a hose built with several layers, each serving a specific purpose. The structure starts with an inner tube, followed by multiple steel wire reinforcement layers, cushion rubber layers, and an outer protective cover. This design allows the hose to handle high pressure and harsh environments.
The combination of these materials gives you a product that resists abrasion, chemicals, and extreme temperatures.
Inner Tube: NBR Rubber
The inner tube forms the core of the hose. Alienfrac uses high-quality synthetic rubber, specifically NBR (Nitrile Butadiene Rubber), for this layer. NBR rubber stands out for its chemical resistance and durability. You can see the main advantages in the table below:
| Advantage | Description |
|---|---|
| Chemical Resistance | NBR rubber is compatible with various hydraulic fluids, preventing issues like swelling and degradation. |
| Durability | NBR hoses are designed to withstand high pressure and temperature, ensuring a long service life. |
This high-quality synthetic rubber ensures that the drilling fluid flows smoothly without damaging the hose from the inside.
Reinforcement: Steel Wire Layers
You rely on the steel wire reinforcement to give the hose its strength. Alienfrac uses multiple layers of high-tensile steel wire, which play a key role in the hose’s performance:
- Steel wire reinforcement enhances tensile strength, enabling hoses to withstand high internal pressures.
- Different reinforcement structures, such as braided and winding, influence flexibility and pressure resistance.
- The bonding between steel wire and rubber is crucial for the flexural resistance and performance of hydraulic hoses.
This reinforcement allows the hose to maintain flexibility while resisting kinks and bursts during operation.
Outer Cover: Chloroprene Rubber
The outer cover protects the hose from external threats. Alienfrac uses high-quality synthetic rubber, specifically chloroprene rubber, for this layer. This material shields the hose from abrasion, weather, oil, and ozone. You can trust this cover to extend the service life of your hose, even in the toughest oilfield conditions.
Physical Characteristics
You will notice that Alienfrac hoses have a robust yet flexible structure. The combination of advanced materials and precise engineering results in hoses that are lightweight, easy to handle, and resistant to wear. The hoses maintain their shape and performance under constant movement and vibration.
This makes them ideal for demanding drilling environments.
Alienfrac uses advanced manufacturing equipment, including efficient German and American weaving, winding, and spiral machines, UNIFLEX crimping, and innovative large-scale hose machines.
These technologies allow the factory to produce large-caliber wire-wrapped oil drilling hoses at 1000 meters per day and hydraulic hoses at 120,000 meters per day. You receive hoses that meet strict quality standards, backed by certifications from DNV MED, CCS, ABS, and API.
Note: When you choose Alienfrac, you invest in hoses made from the best materials and produced with cutting-edge technology. This ensures reliability and safety for your oilfield operations.

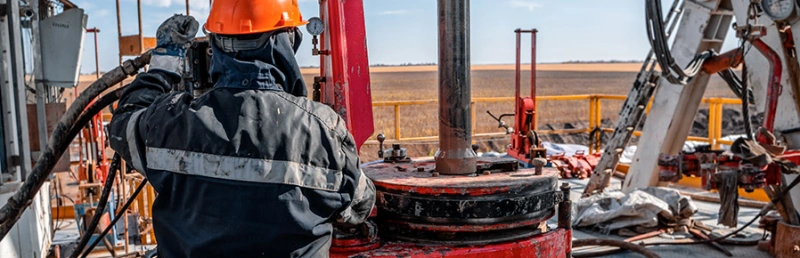

Drilling Hose Application
Oil & Gas Drilling
You depend on drilling hoses for critical oil and gas drilling operations. These hoses move drilling fluids from the mud pump to the drill string, ensuring continuous circulation in the drilling system. You use them to maintain pressure, cool the drill bit, and remove cuttings from the wellbore.
Drilling hoses handle high-pressure drilling fluids, making them essential for safe and efficient drilling operations. You can trust these hoses to perform in both onshore and offshore drilling environments, supporting every drilling operation with reliability.
Mineral Extraction
You face tough conditions in mineral extraction. Drilling hoses from Alienfrac deliver outstanding performance in these demanding applications. The table below highlights how these hoses improve efficiency and adaptability in mineral extraction processes:
| Feature | Description |
|---|---|
| Pressure Resistance | Up to 15,000 PSI / 20,000 PSI |
| Abrasion Resistance | Extremely strong, suitable for high-wear environments |
| Corrosion Resistance | Resistant to acid and alkali, enhancing durability in harsh conditions |
| Fatigue Resistance | Designed to withstand repeated stress without failure |
| Applications | Used in fracturing operations, drilling mud transportation, and blowout prevention control |
You benefit from hoses that withstand harsh chemicals, repeated stress, and abrasive drilling fluids. These features make Alienfrac hoses ideal for a wide range of drilling applications in mineral extraction.
Flexible Connections & Vibration Dampers
You need flexible connections in your drilling system to absorb movement and vibration. Drilling hoses create these connections between equipment, such as pumps and rigs, and between oil tankers and wells.
These hoses absorb vibrations and reduce stress on your drilling system, protecting your equipment during drilling operations. You maintain efficient drilling operations by using hoses that handle dynamic conditions and high-pressure drilling fluids.
Use Between Oil Tankers And Wells
You rely on drilling hoses for safe fluid transfer between oil tankers and wells. These hoses withstand high pressures and the constant movement of drilling operations. They ensure that drilling fluids move efficiently, even when equipment shifts or vibrates.
You reduce the risk of leaks and equipment failure by choosing hoses designed for these challenging applications.
Tip: Alienfrac hoses adapt to a variety of drilling operations, from deep well drilling to offshore platforms. You gain efficiency and safety in every application by selecting the right hose for your drilling system.

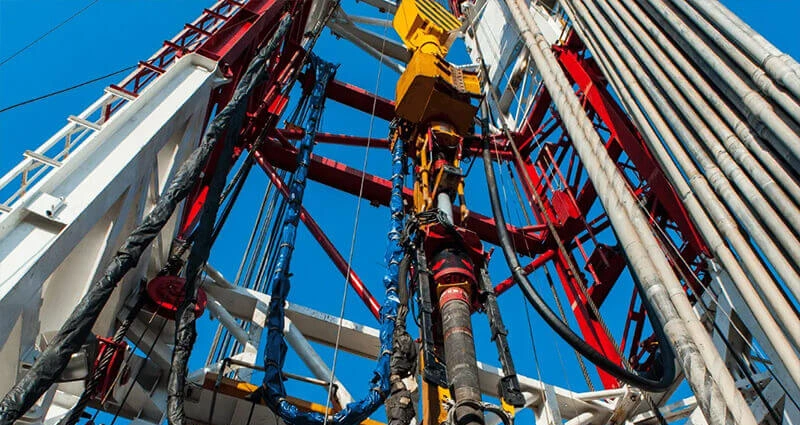

Rotary Hose Technical Specs
When you select a rotary hose for your drilling operation, you need to understand the technical specifications that guarantee safety and performance. Alienfrac designs each rotary hose to meet strict industry standards, ensuring you get the best results in every drilling environment.
Pressure Grades (A-E)
You face different drilling challenges on every site. Rotary hose pressure grades help you match the hose to your drilling operation. Alienfrac rotary hoses meet API 7K specifications, which define five pressure grades:
- Grade A: Handles lower-pressure drilling operations. You use this grade for shallow wells or less demanding conditions.
- Grade B: Offers moderate pressure resistance. This grade suits standard rotary drilling tasks.
- Grade C: Delivers higher pressure capacity. You choose this grade for deeper wells and more intense drilling.
- Grade D: Supports very high pressure. You rely on this grade for challenging drilling operations where safety is critical.
- Grade E: Provides the highest pressure rating available. You select this grade for extreme drilling environments, such as deep offshore wells or high-pressure formations.
Each grade ensures the rotary hose maintains structural integrity and performance under the specific pressure demands of your drilling operation. You protect your crew and equipment by choosing the right grade for your application.
Note: Alienfrac rotary hoses undergo rigorous pressure testing to ensure compliance with API standards. You can trust these hoses to deliver consistent performance and safety.
Resistance Properties
You demand more than just pressure resistance from your rotary hose. Alienfrac rotary hoses deliver outstanding performance in harsh drilling environments. The table below highlights the key resistance properties that set these hoses apart:
| Feature | Description |
|---|---|
| High Resistance to Acids and Alkalis | Built to endure both low and high pH levels without degrading. |
| Corrosion-Resistant Inner Lining | Features a smooth, specialized inner tube that prevents chemical penetration. |
| Abrasion-Resistant Outer Cover | Protects the hose from external wear, dragging, and environmental damage. |
| Flexible Rubber Body | Allows for easy maneuvering and installation in tight or complex industrial spaces. |
| Strong Reinforcement | Utilizes synthetic fabrics or wire helices to handle high-pressure environments. |
| Leak-Proof Performance | Engineered for secure connections with industrial fittings to prevent hazardous drips. |
| Temperature Resistance | Capable of maintaining structural integrity in extreme hot or cold chemical transfers. |
| Long Service Life | Durable construction reduces the frequency of replacements and lowers long-term operational costs. |
You benefit from a rotary hose that resists chemical attack, abrasion, and corrosion. The strong reinforcement and flexible rubber body give you the strength and maneuverability needed for efficient drilling. Leak-proof performance and long service life help you reduce downtime and maintenance costs.
Working Temperature Range
Drilling operations often expose your rotary hose to extreme temperatures. Alienfrac rotary hoses maintain performance and strength across a wide range of conditions. You can rely on these hoses in both hot and cold environments.
- Working temperature: -20° C to +121° C (customized options available)
- Working temperature: -30° C to +82° C
You keep your drilling operation running smoothly, even when temperatures fluctuate. The rotary hose maintains flexibility and structural integrity, ensuring safe fluid transfer and consistent performance.
Tip: Always check the temperature rating before starting a new drilling operation. This step helps you avoid hose failure and maximize safety.
End Fittings & Custom Options
You need rotary hoses that fit your specific drilling equipment. Alienfrac offers a wide range of end fittings and custom options to match your requirements. You can choose from:
- Hammer unions
- Flanged connections
- Threaded couplings
- Quick-connect fittings
Alienfrac engineers can customize hose length, diameter, and reinforcement structure to suit your drilling operation. You get a rotary hose that integrates seamlessly with your rig, improving compatibility and reducing installation time.
You also benefit from hoses designed for easy maintenance and replacement. The right end fittings ensure secure, leak-proof connections, enhancing overall performance and safety during drilling.
Note: Alienfrac rotary hoses combine durability, flexibility, and compatibility. You receive a product that meets the highest industry standards and adapts to your unique drilling needs.
Alienfrac Quality Assurance
Inspection & Testing
You want confidence in every drilling hose you use. Alienfrac puts each hose through strict inspection and testing before it leaves the factory. You see advanced equipment checking for leaks, pressure resistance, and flexibility. Every step in the process focuses on maintaining high quality.
You get a product that meets or exceeds industry standards for drilling safety and performance. This attention to detail helps reduce failure rates and keeps your drilling operation running smoothly.
Certifications & Warranty
You need proof that your drilling hose meets global standards. Alienfrac holds a wide range of international certifications. These certifications show a commitment to quality and safety in every product. The table below highlights the main certifications you benefit from:
| Certification Type | Description |
|---|---|
| API 7K | Monogram |
| API 16C | Monogram |
| API Q1 | Monogram |
| ISO 9001 | Quality Management System |
| DOT Certification | Department of Transportation compliance |
| MA MSHA | Mine Safety and Health Administration |
| ROHS Reach | Environmental compliance |
| New Invention Patent | Patent for new technology |
| Business License | Legal authorization |
| Listed Enterprise | Recognized listed business |
| New High Tech Enterprise | High-tech certification |
| Production License for Industrial Products | Manufacturing license |
| Qingdao Certificated Enterprise Technology Center | Tech center |
| Famous Brand Certification | Brand recognition |
| AMECA Certification | Automotive product certification |
Alienfrac also provides a clear warranty policy. You receive support if you ever face a rare issue with hose quality or performance.
After-Sales Support
You deserve reliable support after your purchase. Alienfrac offers responsive after-sales service to help you solve any problems quickly. You can contact technical experts for advice on installation, maintenance, or troubleshooting. This support ensures your drilling operation stays efficient and safe.
Tip: Always keep your warranty documents and contact information handy for fast service.
Global Reach
You operate in a global industry. Alienfrac delivers drilling hoses to customers around the world. You benefit from fast shipping, local support, and a supply chain that keeps your drilling projects on schedule. Alienfrac’s commitment to quality and service extends to every region, so you always receive the best products and support.
Choosing a certified, reliable manufacturer like Alienfrac protects your team and equipment. You gain peace of mind knowing your drilling hose meets the highest standards for quality and safety.
Conclusion
Selecting the right drilling hose is essential for safe and efficient oilfield operations. You should evaluate several factors before making your choice:
| Factor | Description |
|---|---|
| Application | Identify the specific function of the hose (e.g., drilling, well control, hydraulic BOP control). |
| Working Pressure and Temp | Ensure specifications meet or exceed the maximum working pressure and temperature of the application. |
| Media Compatibility | The inner tube must be compatible with the fluids being transported (e.g., drilling mud, oil). |
| End Connections | Verify compatibility of end connections with existing equipment (e.g., hammer unions, flanges). |
| Manufacturer Reputation | Choose a reputable manufacturer with a proven track record of quality and reliability. |
Understanding drilling hose structure, materials, and technical specs leads to:
- Improved safety for your team
- Greater operational efficiency
- Enhanced wellbore integrity
- Reduced environmental impact
- Cost savings over time
- Reliable operational success
- Adaptability to changing conditions
- Compliance with industry standards
Alienfrac offers you certified, innovative solutions for every drilling challenge.
FAQ
What is a drilling hose used for?
You use a drilling hose to transport high-pressure drilling fluids between pumps and rigs. This hose keeps your equipment safe and ensures stable fluid circulation during the drilling process.
How do you select the right drilling hose?
You check the working pressure, temperature range, and compatibility with your drilling equipment. You also verify certifications and choose a trusted manufacturer like Alienfrac.
How often should you inspect drilling hoses?
You inspect drilling hoses before each operation and after every drilling cycle. Regular checks help you spot wear, leaks, or damage early.
What types of end fittings are available?
You can choose hammer unions, flanged connections, threaded couplings, or quick-connect fittings. Alienfrac offers custom options to match your equipment.
How long does a drilling hose last?
You can expect a drilling hose to last several months to years, depending on pressure cycles, abrasion, and maintenance. Proper storage and inspection extend service life.
Tip: Always follow manufacturer guidelines for installation and maintenance to maximize hose performance.
