As an important oil hose in the marine industry, the submarine hose is suitable for use in connecting with subsea manifolds, and main submarine pipelines fitted in the hose strings on the single buoy mooring system.
This subsea hoses are available with single carcass and double carcass design.
Standards
Our submarine hoses are designed and manufactured by OCIMF standards and are certified by the ISO 9000:2001 quality management system.
Features
Technical Parameters
(Following data set underrated working pressure of 15, 19, or 21 bar)

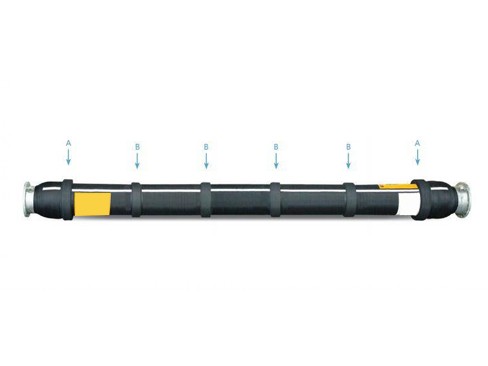

| Inner Diameter | Weight in Air Empty | Outside Diameter | Min. Bending Radius | |||
| mm | kg | mm | m | |||
| 9.1m | 10.7m | 12.2m | A | B | ||
| 150(6″) | 372/144 | 458/178 | 458/178 | 368 | 254 | 0.6(2.0″) |
| 200(8″) | 505/217 | 561/242 | 617/267 | 471 | 311 | 0.8(2.8″) |
| 250(10″) | 681/282 | 762/311 | 843/340 | 471 | 368 | 1.0(3.3″) |
| 300(12″) | 942/346 | 1052/381 | 1162/416 | 581 | 471 | 1.2(4.0″) |
| 400(16″) | 1389/592 | 1559/659 | 1729/726 | 697 | 581 | 1.6(5.3″) |
| 500(20″) | 1840/837 | 2072/928 | 2304/1019 | 799 | 697 | 2.0(6.6″) |
| 600(24″) | 2704/1254 | 3030/1399 | 3356/1544 | 946 | 799 | 2.4(8.0″) |
