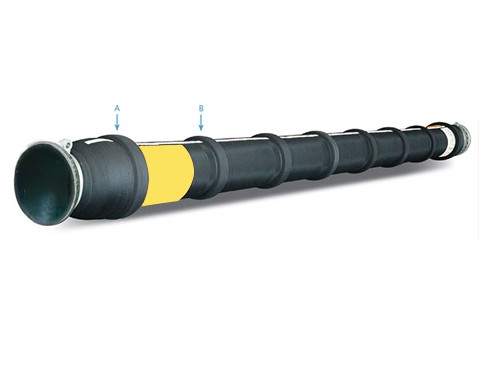

To guarantee high quality, the lining of the submarine hose is manufactured using textile-reinforced bonded elastomers. This one-end reinforced subsea hose is used for connecting with single point mooring (SPM) systems and subsea manifolds, which is suitable for continuous fluid transporting at 21 m/s flo.
Standards
Our submarine hoses are designed and manufactured by OCIMF standards and are certified by the ISO 9000:2001 quality management system.
Technical Parameters
(Following data set underrated working pressure of 15, 19, or 21 bar)
| Inner Diameter | Weight in Air Empty | Outside Diameter | Min. Bending Radius | |||
| mm | kg | mm | m | |||
| 9.1m | 10.7m | 12.2m | A | B | ||
| 150(6″) | 382/144 | 419/161 | 456/178 | 368 | 254 | 0.6(2.0″) |
| 200(8″) | 485/218 | 541/243 | 596/268 | 471 | 311 | 0.8(2.8″) |
| 250(10″) | 575/286 | 756/315 | 837/344 | 471 | 368 | 1.0(3.3″) |
| 300(12″) | 893/327 | 1003/372 | 1013/417 | 581 | 471 | 1.2(4.0″) |
| 400(16″) | 1808/659 | 2028/726 | 2248/793 | 697 | 581 | 1.6(5.3″) |
| 500(20″) | 2412/928 | 2694/1019 | 2976/1110 | 799 | 697 | 2.0(6.6″) |
| 600(24″) | 3369/1367 | 3775/1572 | 4181/1659 | 946 | 799 | 2.4(8.0″) |
