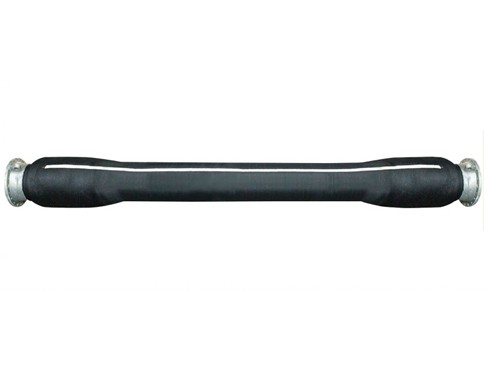

Designed without float collards, the submarine hose features textile reinforced bonded elastomers used as the lining. This one end reinforced subsea hose is used for connecting with the buoy systems, subsea manifolds, etc.
Features
Technical Parameters
(Following data set underrated working pressure of 15, 19, or 21 bar)
| Inner Diameter | Weight in Air Empty | Outside Diameter | Min. Bending Radius | |||
| mm | kg | mm | m | |||
| 9.1m | 10.7m | 12.2m | A | B | ||
| 150(6″) | 342/137 | 380/152 | 418/167 | 305 | 210 | 0.6(2.0″) |
| 250(10″) | 639/272 | 712/299 | 785/326 | 415 | 320 | 1.0(3.3″) |
| 300(12″) | 810/305 | 902/334 | 994/363 | 485 | 375 | 1.2(4.0″) |
| 400(16″) | 1216/560 | 1359/619 | 1502/678 | 575 | 475 | 1.6(5.3″) |
| 500(20″) | 1600/778 | 1792/858 | 1984/938 | 695 | 580 | 2.0(6.6″) |
| 600(24″) | 2404/1180 | 2680/1309 | 2956/1438 | 810 | 700 | 2.4(8.0″) |
