Precisely sealed bond surface ensures reliable pressure tightness. It is recommended for application with oil, water, mud, gas or air.

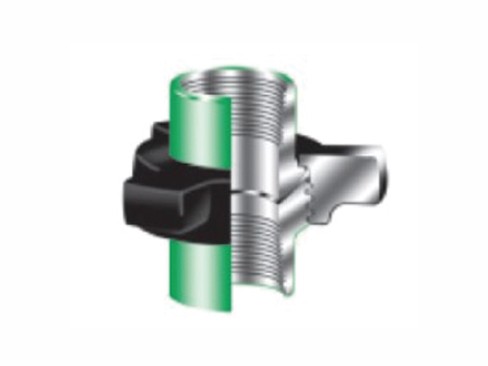

For figure 301, 3000PSI NSCWP, test pressure at 4500PSI with black nut and green parts.
| Nominal pipe size | Total length | Nut radius | Materials | Weight | |||||
| in | mm | in | mm | in | mm | Nut | Part | lbs | kgs |
| 1 | 25.4 | 2 11/18 | 68.3 | 1 15/18 | 49.2 | SC/SF | SF | 1.75 | 0.8 |
| 2 | 50.8 | 3 5/18 | 84.1 | 2 20/32 | 73.8 | SF | 5.25 | 2.4 | |
