The resilient nitrile-butadiene rubber seal ring is mounted. It is recommended for cement filling, fracturing, acidizing, testing, and choke and kill lines. It is designed for high-pressure systems including truck-mounted systems. Also, it may be used as a pressureless seal union.
Butt weld Sch. 160 or XXH is desired.

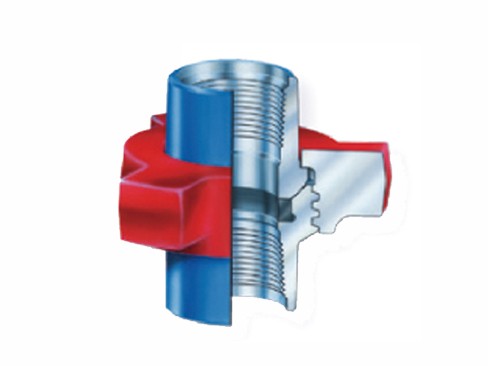

For figure 1002, 10000PSI NSCWP, test pressure at 15000PSI with red nut and blue parts.
Figure # 1002 union may also be used in applications with H2S and other acid gases.
| Nominal pipe size | Total length | Pipck bore | Nut radius | Materials | Weight | ||||||
| in | mm | in | mm | in | mm | in | mm | Nut | Part | lbs | kgs |
| 1 | 25.4 | 3 1/2 | 88.9 | 1/4 | 6.4 | 2 1/4 | 57.2 | SF | SF | 3.5 | 1.6 |
| 2 | 50.8 | 5 3/18 | 131.8 | 1/4 | 6.4 | 3 11/18 | 93.7 | 13.25 | 5.9 | ||
| 3 | 76.2 | 6 3/8 | 161.92 | 3/8 | 9.5 | 4 3/8 | 117.5 | 21 | 9.5 | ||
| 4 | 101.6 | 8 1/18 | 204.8 | 3/8 | 9.5 | 5 1/4 | 133.4 | 39.5 | 17.9 | ||
| 5 | 127 | 8 4/18 | 172.7 | 6 | 152.4 | 61.67 | 28 | ||||
| 6 | 152.4 | 7 1/18 | 179.4 | 7 1/4 | 184.2 | 70.48 | 32 | ||||
