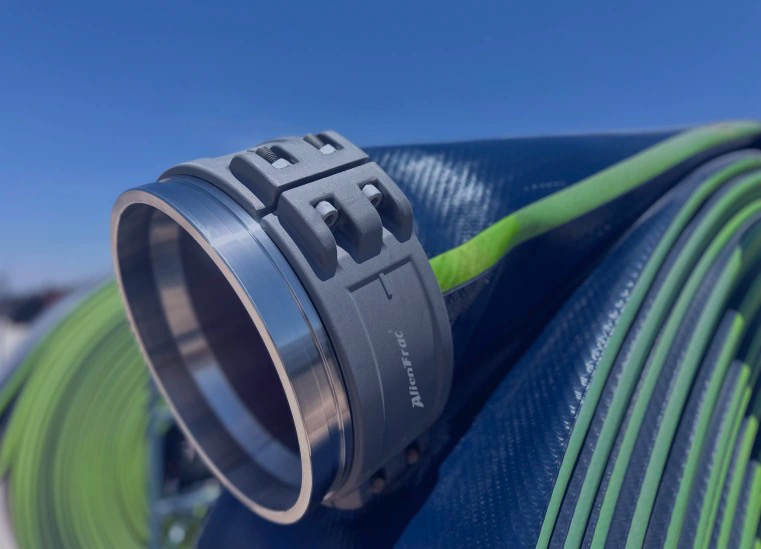

TPU Frac Water Supply Hose with Reflective Strips

Applications

Oil & gas fracturing water supply and water transfer
Shale gas field high‑pressure water delivery
Industrial wastewater and mud transfer
Mining, engineering and large‑scale outdoor water transportation
Emergency water supply and drainage operations

ID		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight
inch	mm	mm	inch	mm	psi	psi	lbs/ft	kg/m
2″	51	51.0-53.0	0.071	1.80	250	750	0.28	0.42
2″	51	51.0-53.0	0.138	3.50	410	1230	0.47	0.70
3″	76	76.0-78.0	0.118	3.00	250	750	0.60	0.90
3″	76	76.0-78.0	0.126	3.20	410	1230	0.70	1.05
4″	102	102-104.5	0.110	2.80	200	600	0.72	1.08
4″	102	102-104.5	0.138	3.50	250	750	0.87	1.30
4″	102	102-104.5	0.142	3.60	300	900	0.94	1.40
4″	102	102-104.5	0.189	4.80	610	1830	1.27	1.90
5″	125	125-127.5	0.142	3.60	150	450	1.21	1.80
6″	152	154-157	0.126	3.20	150	450	1.27	1.90
6″	152	154-157	0.149	3.80	250	750	1.41	2.10
6″	152	154-157	0.165	4.20	300	900	1.68	2.50
6″	152	154-157	0.228	5.80	410	1230	2.28	3.40
6″	152	154-157	0.216	5.50	610	1830	2.14	3.20
8″	204	204-207	0.149	3.80	200	600	1.94	2.90
8″	204	204-207	0.157	4.00	250	750	2.28	3.40
8″	204	204-207	0.165	4.20	300	900	2.35	3.50
8″	204	204-207	0.165	4.20	410	1230	2.68	4.00
10″	254	256-259	0.165	4.20	200	600	2.68	4.00
10″	254	256-259	0.177	4.50	250	750	3.02	4.50
10″	254	256-259	0.197	5.00	300	900	3.69	5.50
12″	306	306-311	0.165	4.20	150	450	2.81	4.20
12″	306	306-311	0.197	5.00	200	600	3.48	5.20
14″	356	356-360	0.189	4.80	150	450	4.36	6.50
16″	406	406-410	0.197	5.00	100	300	4.56	6.80
16″	406	406-410	0.212	5.40	150	450	5.23	7.80
