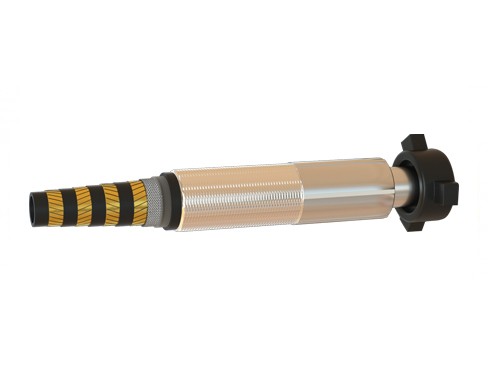

BOP Control Hose (Crimped Armored) A841

APPLICATION: Hydraulic control line for remotely control the blowout preventer (BOP) at high pressure

TEMPERATURE: -40℃ ~ +121℃ (-40℉~+250℉)

MATERIALS:

Tube: Synthetic rubber, full flow
Reinforcement: Multi-layer of high tensile super flexible spiral steel wire
Middle: Synthetic rubber
Cover: Abrasion, oil, weather, high temperature and flame resistant synthetic rubber (resistant to 704 °C open fire for 30 minutes)

STANDARDS: API Spec. 16D

Hose Part No.	I.D.		W.P.	P.P.	B.P.	Min.B.R.	Weight
	inch	mm	psi	psi	psi	mm	kg/m
A841-06-3K	3/8	10	3000	6000	12000	152	0.9
A841 -08-3K	1/2	13				229	1.1
A841-12-3K	3/4	19				305	1.5
A841-16-3K	1	25				381	2.7
A841-20-3K	1 1/4	32				457	3.7
A841-24-3K	1 1/2	38				559	4.5
A841-32-3K	2	51				686	5.8
A841-06-3K	3/8	10	5000	10000	20000	152	1.3
A841-08- 5K	1/2	13				229	1.5
A841-12-5K	3/4	19				305	2
A841-16-5K	1	25				381	3.1
A841-20-5K	1 1/4	32				457	4.9
A841-24-5K	1 1/2	38				559	5.8
A841-32-5K	2	51				686	8.4
