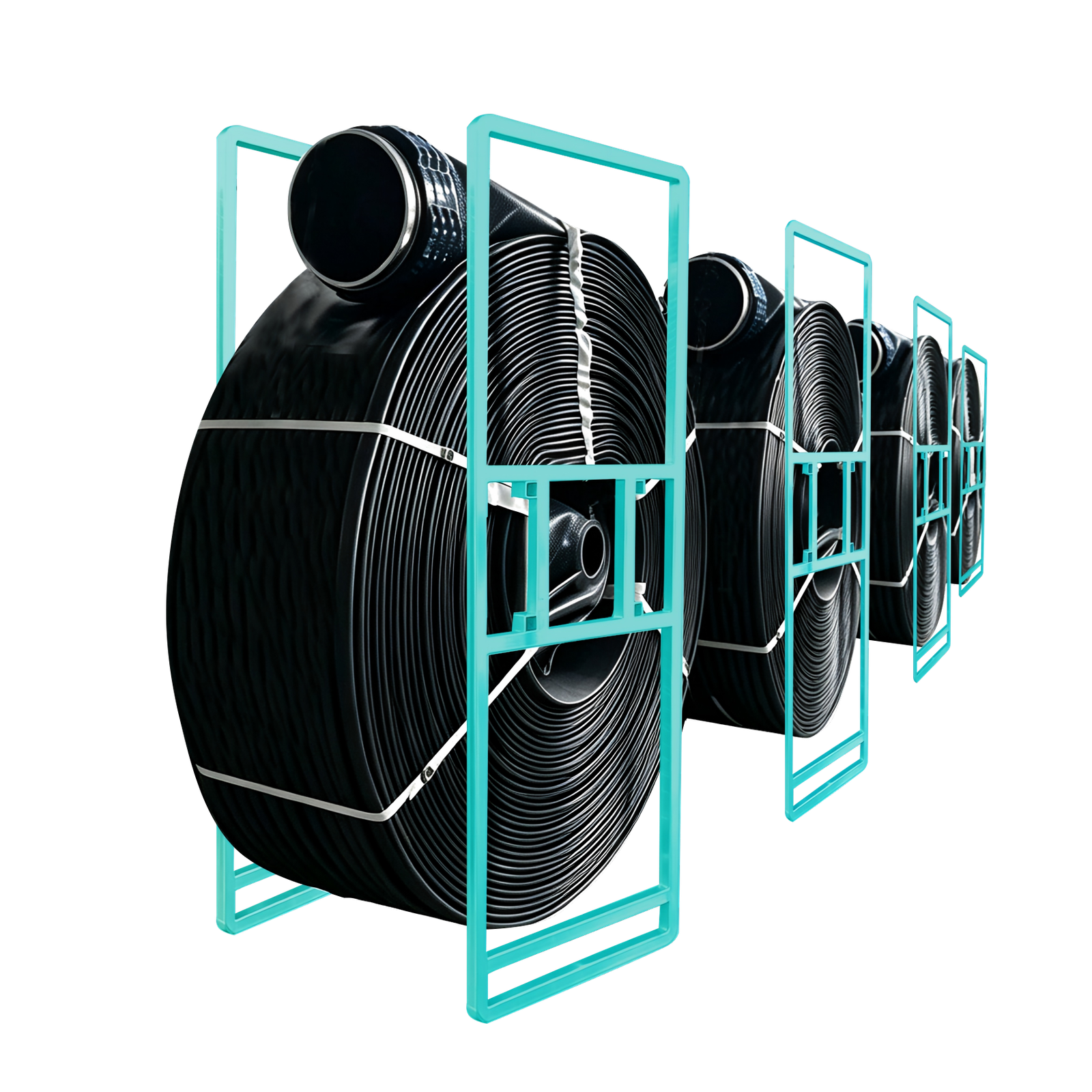

16 inch TPU Layflat Frac Hose

16 inch TPU Layflat Frac Hose

16 inch TPU Layflat Frac Hose for high-volume frac water transfer and temporary water supply lines.
Confirmed specification: 16 inch size, 200 psi working pressure, 600 psi burst pressure, 5.6 mm wall thickness, 200 m per roll.
The thru-the-weave TPU cover and liner encapsulate a high tensile polyester jacket for abrasion resistance, low elongation, UV resistance, and fast deployment and retrieval.

Get a Quote

16 inch TPU Layflat Frac Hose Overview

The 16 inch TPU Layflat Frac Hose is built for large-flow water transfer in frac sites and temporary pipeline systems. It uses a TPU thermoplastic inner liner and outer cover with a high tensile polyester woven reinforcement jacket to provide dimensional stability, abrasion resistance, and reliable field handling.

Confirmed Specification

Nominal Size Working Pressure Burst Pressure Wall Thickness Standard Roll Length Application
16 inch 200 psi 600 psi 5.6 mm 200 m per roll Frac water transfer / temporary water supply line

Key Features

  • Rapid deployment and retrieval for temporary frac water supply lines.
  • Thru-the-weave extruded TPU cover and liner encapsulating the woven reinforcement jacket.
  • High tensile polyester inner woven jacket for strength and low elongation under pressure.
  • TPU outer cover provides excellent abrasion, UV, and mildew resistance.
  • TPU inner liner provides chemical resistance and abrasion resistance when pumping suspended solids.
  • Designed for dimensional stability and return to nominal diameter after extended pressurization.

Working Temperature Range: -58F to 176F (-50C to 80C)
