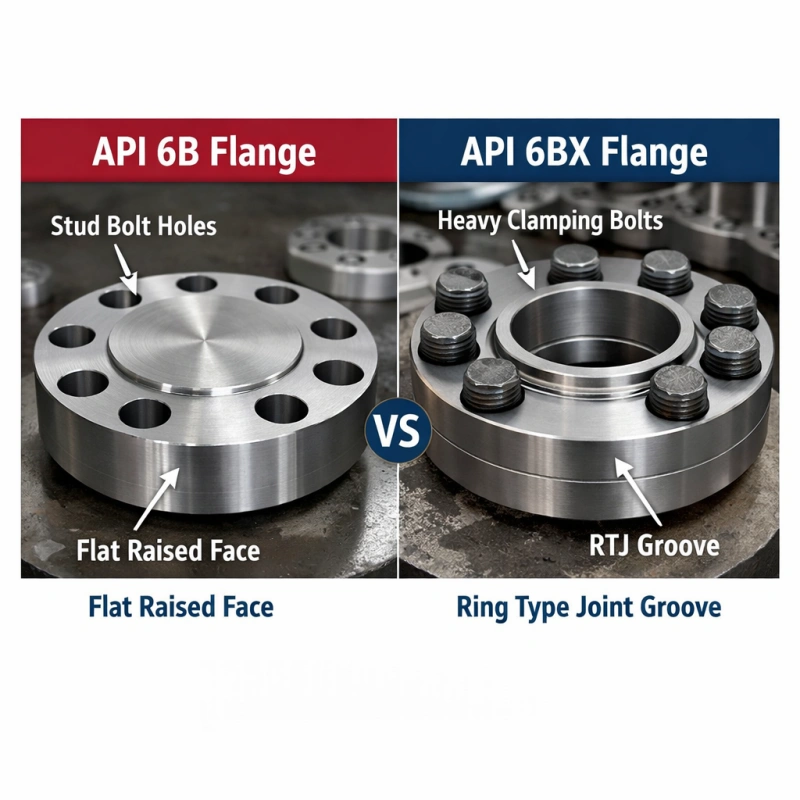

When you compare API 6B and 6BX flanges, you see clear differences in design, pressure rating, and sealing methods. The table below outlines these distinctions:
| Feature | API 6B Flange | API 6BX Flange |
|---|---|---|
| Design | Not suitable for face-to-face connection; uses a metal gasket | Raised face; special weld neck for standard pipe size |
| Pressure Rating | 2000#, 3000#, 5000# | Withstands higher pressures and temperatures in harsh environments |
| Sealing Mechanism | Reliable sealing; high load-bearing capacity | Metal ring resists deformation and thermal expansion |
You must choose the right flanges for each application to ensure safety and efficiency. API 6A flanges from Alienfrac give you reliable performance for demanding oil and gas operations.
Key Takeaways
- API 6B flanges are suitable for moderate pressures up to 5,000 psi, while API 6BX flanges can handle extreme pressures up to 20,000 psi.
- Choose API 6B flanges for general oilfield applications; select API 6BX flanges for high-pressure and high-temperature environments.
- API 6BX flanges feature a raised face design that enhances sealing, making them ideal for critical connections.
- Always verify your system’s pressure and temperature requirements before selecting a flange to ensure safety and reliability.
- Consult with manufacturers like Alienfrac for expert advice and high-quality flanges that meet API standards.
API 6A Flanges in Oil and Gas

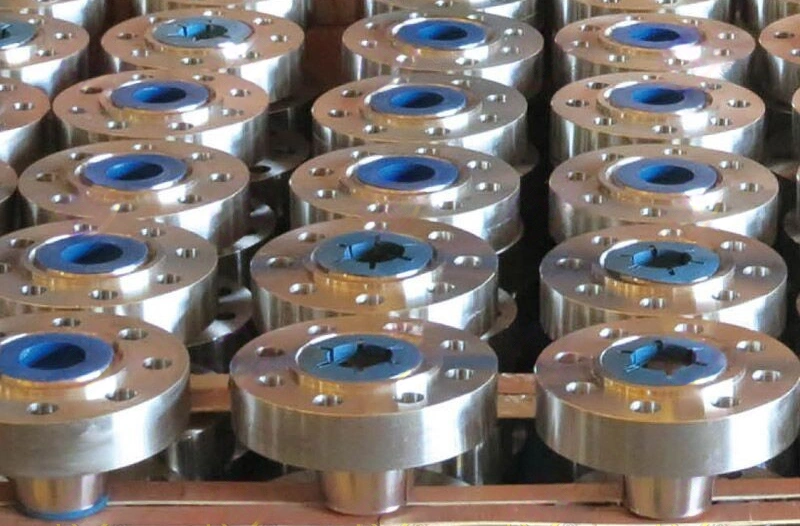

API 6A Standard Overview
You rely on the API 6A standard to ensure safety and reliability in oil and gas operations. This standard governs the design and performance of critical components used in wellhead and Christmas tree equipment.
When you use api 6a flanges, you secure connections between valves, pipes, and other pressure-containing parts. These flanges play a vital role in maintaining operational safety, especially in high-pressure environments.
The api 6a standard sets strict requirements for quality, so you can trust that your equipment will perform under demanding conditions.
- API 6A flanges are designed for wellhead and Christmas tree assemblies.
- They provide secure, leak-proof connections for pressure-containing equipment.
- The standard ensures that all components meet rigorous quality and safety criteria.
Applications and Pressure Ratings
You see api 6a flanges used in a wide range of oil and gas field applications. These flanges connect high-pressure equipment in oil wells, separators, flow meters, and pipelines. Their robust construction allows them to handle extreme pressures, making them essential for safe and efficient production.
| Flange Type | Pressure Ratings (psi) |
|---|---|
| Type 6B | 2,000, 3,000, 5,000 |
| Type 6BX | 5,000, 10,000, 15,000, 20,000 |
You find api 6a flanges in these common applications:
- Oil wells and Christmas trees
- Oil and gas separators
- Flow meters and pressure vessels
- High-pressure pipelines
Alienfrac API Flanges Features
When you choose Alienfrac api 6a flanges, you benefit from advanced manufacturing and strict quality control. Alienfrac produces these flanges using high-pressure forging, which gives you strength and durability.
Every flange meets the api 6a standard, with compliance verified by third-party certifications like the API Monogram. You receive a Manufacturer’s Test Report and full material traceability, ensuring reliability for sour service environments.
- Alienfrac api 6a flanges withstand working pressures up to 20,000 psi.
- Each flange meets Product Specification Level (PSL-2 or PSL-3) requirements.
- The company follows strict guidelines for material, size, and strength.
- Alienfrac holds certifications from DNV MED, CCS, ABS, and API.
You can trust Alienfrac api 6a flanges to deliver secure, long-lasting connections in the toughest oil and gas environments.
API 6B Flanges
Design and Construction
You encounter API 6B flanges in many oil and gas systems because of their robust design. These flanges use a ring joint type and do not support face-to-face makeup. The bolt force applies directly to a metallic ring gasket, which helps you achieve a secure connection.
You often see through-bolted or studded construction, which adds strength and reliability. The dimensions follow strict guidelines set by API 6A, ensuring compatibility and safety.
| Feature | Description |
|---|---|
| Type | Ring joint, not for face-to-face makeup |
| Bolt Force | Applied to the metallic ring gasket |
| Design | Through bolted or studded |
| Dimensions | As specified in API 6A tables and figures |
You find these flanges made from materials like carbon steel, stainless steel, and alloy steel. These materials offer high density, high yield strength, and excellent tensile strength, making them suitable for demanding environments.
Pressure Classes and Sealing
API 6B flanges handle pressure ratings up to 10,000 psi. You rely on their flat face with soft gaskets for effective sealing in moderate-pressure systems. This sealing method provides a reliable barrier against leaks, even when you operate under fluctuating pressures.
| Aspect | API 6B Flange |
|---|---|
| Pressure Rating | Up to 10,000 psi |
| Sealing Mechanism | Flat face with soft gaskets |
Typical Applications
You use API 6B flanges in moderate-pressure oil and gas systems. These flanges work well for valves and drilling equipment that do not require the highest pressure ratings. You often choose them as a cost-effective solution for standard oilfield operations.
| Application Context | Description |
|---|---|
| Moderate-Pressure Systems | Up to 10,000 psi |
| Equipment Type | Valves, drilling systems |
| Economic Option | Cost-effective for typical oilfield use |
Alienfrac API Flanges Advantages
When you select Alienfrac API 6B flanges, you gain the benefits of advanced manufacturing and strict quality control. Alienfrac uses high-quality materials and precise machining to deliver flanges that meet API standards.
You receive products that offer reliable sealing, long service life, and compatibility with a wide range of oilfield equipment. Alienfrac’s commitment to quality ensures your operations remain safe and efficient.
API 6BX Flanges
Raised Face and Sealing
You encounter API 6BX flanges when you need a raised face design that delivers superior sealing. The raised face allows you to use a metal ring gasket, which resists deformation and thermal expansion.
This feature ensures you achieve reliable sealing performance, even in high-pressure and high-temperature conditions. You benefit from a secure connection that prevents leaks and maintains system integrity. The design supports easy alignment and installation, making your maintenance tasks more efficient.
High Pressure Ratings
You rely on API 6BX flanges for operations that demand exceptional pressure tolerance. These flanges meet API standards for maximum pressure ratings, which you can see in the table below:
| Pressure Class | Maximum Pressure (psi) |
|---|---|
| 5,000 | 5,000 |
| 10,000 | 10,000 |
| 15,000 | 15,000 |
| 20,000 | 20,000 |
You choose API 6BX flanges when you need to handle extreme pressures. The robust construction and precise machining help you maintain safety and efficiency in critical oil and gas applications.
Extreme Environment Applications
You use API 6BX flanges in environments where durability and safety are essential. These flanges withstand corrosive fluids, high temperatures, and rapid pressure changes. You find them in oil wells, separators, flow meters, and high-pressure pipelines. The table below shows typical applications:
| Application Type | Description |
|---|---|
| Oil Wells and Christmas Trees | Crucial for connecting high-pressure equipment in oil wellhead assemblies. |
| Oil and Gas Separators | Provide reliable sealing and connection for separators used in processing crude oil and natural gas. |
| Flow Meters and Pressure Vessels | Ensure secure, leak-proof connections in systems requiring precise pressure and flow measurement. |
| High-Pressure Pipelines | Widely used in the transportation and processing of oil and gas, providing durability and safety in corrosive environments. |
You depend on API 6BX flanges for their ability to perform in harsh conditions and maintain system reliability.
Alienfrac Product Value
You gain significant value when you select Alienfrac API 6BX flanges. Alienfrac uses advanced manufacturing techniques and high-quality materials to produce flanges that meet strict API standards. You receive products that deliver reliable sealing, withstand extreme pressures, and resist corrosion.
Alienfrac’s commitment to quality ensures your operations run smoothly and safely. You can trust Alienfrac to provide solutions that support your oil and gas projects in the most demanding environments.

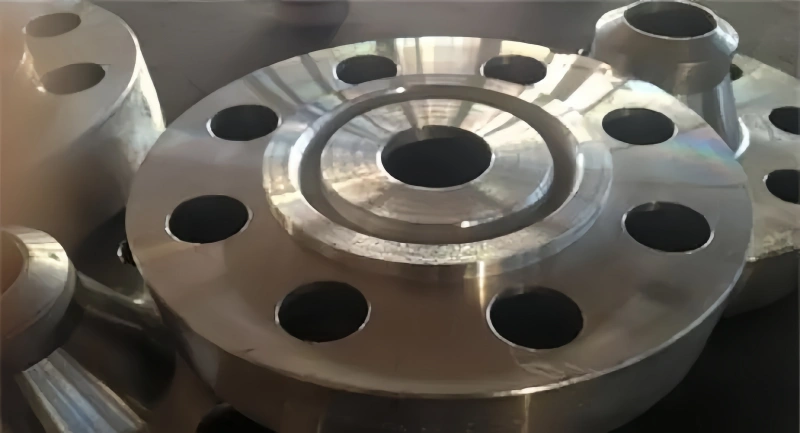

Difference Between API 6b and 6bx Flanges
Key Differences
You need to understand the main differences between API 6B and 6BX flanges before making a selection for your project. Both types serve high-pressure and high-temperature needs in the oil and gas industry. However, their construction and performance set them apart.
| Feature | API 6B Flanges | API 6BX Flanges |
|---|---|---|
| Type | Ring joint type | Ring joint type with raised face |
| Design | Not designed for face-to-face make-up | Designed for face-to-face make-up |
| Pressure Ratings | Up to 5,000 PSI | Up to 20,000 PSI |
| Size Range | 2-1/16″ to 21-1/4″ | 2-1/16″ to 21-1/4″ |
| Application Suitability | General applications | High-pressure and high-temperature applications |
You see that API 6B flanges work well for general oilfield applications. API 6BX flanges give you higher pressure ratings and a raised face design, which makes them suitable for more critical environments.
Pressure and Sealing Mechanisms
You must consider pressure and sealing when choosing between these two flange types. API 6B flanges handle pressures up to 5,000 psi, while API 6BX flanges can withstand up to 20,000 psi. This difference means you should use 6BX flanges for the most demanding jobs.
| Flange Type | Pressure Classes (psi) | Sealing Mechanism | Material Requirements |
|---|---|---|---|
| API 6B | 2,000, 3,000, 5,000 | Standard sealing | High-strength materials |
| API 6BX | 5,000, 10,000, 15,000, 20,000 | Enhanced sealing | High-strength steels (e.g., AISI 4130) |
API 6B flanges use a standard sealing system. You rely on soft gaskets for a tight seal. API 6BX flanges use a metal-to-metal seal with a raised face. This design resists deformation and thermal expansion, giving you better performance in extreme conditions.
Application Suitability
You must match the flange type to your application. API 6B flanges fit moderate-pressure systems. You often use them in standard oilfield equipment and surface installations. API 6BX flanges are ideal for high-pressure and high-temperature environments.
You see them in subsea systems, critical wellhead connections, and other demanding settings.
| Aspect | API 6B Flange | API 6BX Flange |
|---|---|---|
| Pressure Rating | Up to 10,000 psi | Up to 15,000 psi |
| Design | Flat-faced sealing system | Ring-type joint (RTJ) for superior sealing |
| Sealing Mechanism | Flat face with soft gaskets | Metal-to-metal seal for high pressure |
| Applications | Used in moderate-pressure environments | Ideal for high-pressure environments, especially subsea applications |
Tip: Always check your system’s pressure and temperature requirements before choosing a flange. This step ensures safety and reliability.

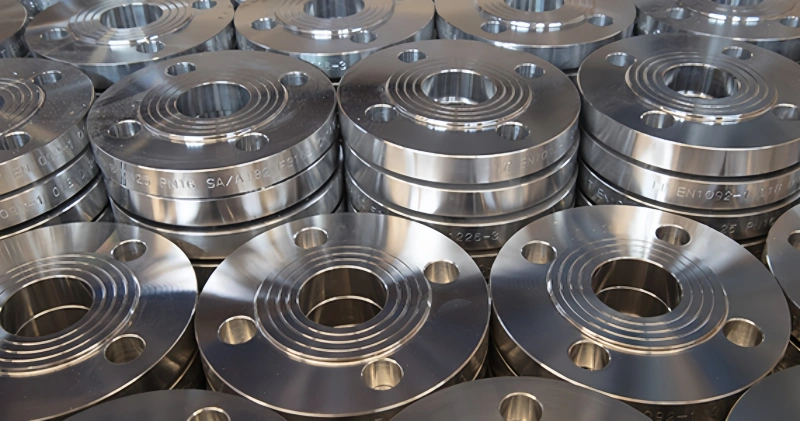

Selection Guidance
You should follow industry best practices when selecting between API 6B and 6BX flanges. Start by reviewing your system’s maximum pressure and temperature. If your operation involves moderate pressures, API 6B flanges offer a cost-effective and reliable solution.
For extreme pressures or critical connections, choose API 6BX flanges. Their enhanced sealing and robust design protect your system in the harshest environments.
You also need to consider compatibility with existing equipment and future maintenance needs. Always verify that your chosen flange meets the latest API standards. This approach helps you maintain safety and efficiency in your operations.
If you need expert advice or custom solutions, reach out to trusted manufacturers like Alienfrac. You can rely on their certified products and technical support to help you select the right flange for your project.
Conclusion
You must understand the differences between API 6B and 6BX flanges. API 6B flanges suit moderate pressures, while API 6BX flanges handle extreme environments. Choosing the wrong flange can lead to severe risks:
| Flange Type | Risk Description |
|---|---|
| ASME in API | Catastrophic failure, blowouts, fires due to lower pressure rating and strength. |
| Dimensional Similarities | Critical errors from misleading similarities can have severe consequences. |
You can trust Alienfrac API Flanges for reliable performance. Consult industry experts or Alienfrac for tailored solutions.
FAQ
What is the main difference between API 6B and 6BX flanges?
You see the main difference in pressure rating and sealing. API 6BX flanges handle higher pressures and use a raised face for metal-to-metal sealing. API 6B flanges suit moderate pressures and use flat face sealing.
Can you use API 6B and 6BX flanges together?
You cannot connect API 6B and 6BX flanges directly. Their designs and sealing mechanisms differ. Always match flange types to ensure safety and proper sealing.
How do you select the right API flange for your oilfield application?
You should check your system’s pressure, temperature, and compatibility needs. For extreme pressures, choose API 6BX. For moderate pressures, select API 6B. Consult with Alienfrac for expert guidance.
Why should you choose Alienfrac API flanges?
You benefit from Alienfrac’s strict quality control, advanced manufacturing, and API certifications. These flanges deliver reliable performance in demanding oil and gas environments.
What materials are available for Alienfrac API flanges?
You can select from carbon steel, stainless steel, alloy steel, and Inconel alloys. Alienfrac offers material options to match your specific operating conditions.
