You know how crucial it is to get the right equipment for your oil and gas projects. Choosing the best hammer unions can make a huge difference in safety and efficiency. Hammer unions create strong, leak-proof connections that stand up to extreme pressure.
Alienfrac stands out as a trusted brand, offering innovative solutions that keep your operations running smoothly. > When you want reliability, top certifications, and proven performance, Alienfrac delivers.
Key Takeaways
- Choose hammer unions that match your operation’s pressure rating for safety and reliability.
- Select unions are made from high-strength, corrosion-resistant materials to ensure durability in harsh environments.
- Look for easy-to-install designs to save time during equipment changes and maintenance.
- Consider brands like Alienfrac and Cameron for their proven performance and industry certifications.
- Regularly inspect and maintain your hammer unions to prevent leaks and ensure optimal performance.

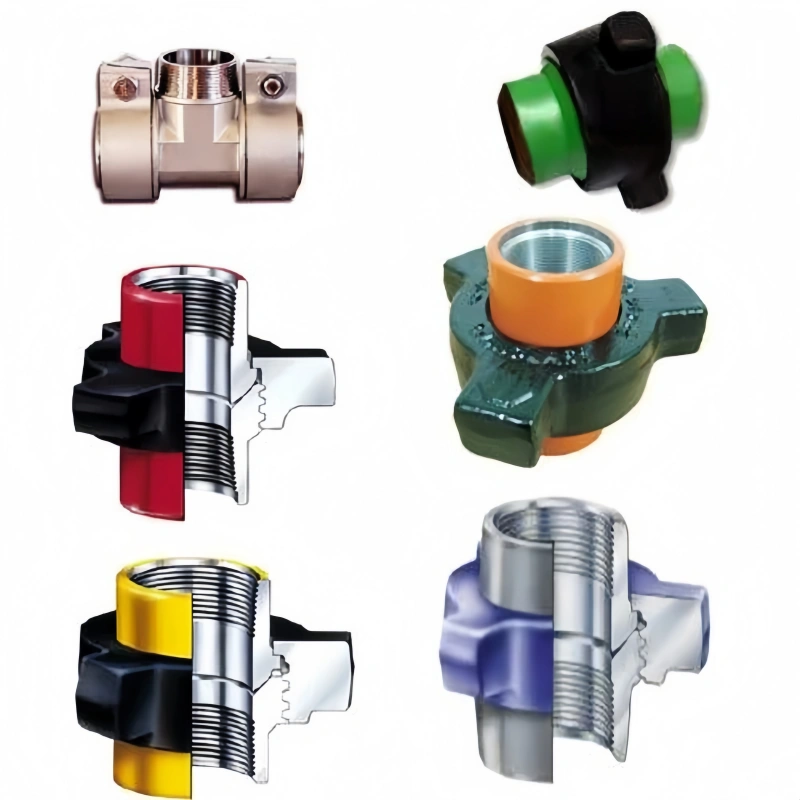

6 Best Hammer Unions for Oil and Gas

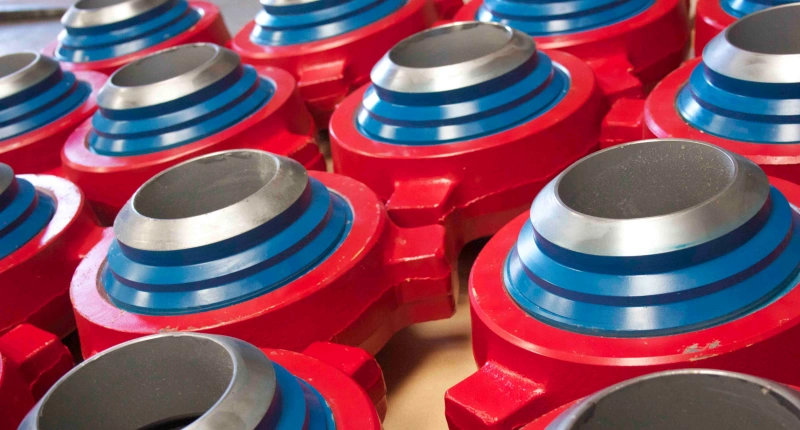

Alienfrac Hammer Union
When you look for the best hammer unions, Alienfrac stands out right away. You want a product that can handle the toughest oilfield jobs, and Alienfrac delivers every time. These hammer unions come from Qingdao Qingflex Hose Factory, a company known for its focus on innovation and quality.
You get a wide range of sizes and pressure ratings, from 1,000 psi up to 15,000 psi, so you can match the right union to your operation.
Alienfrac hammer unions use high-strength steel and corrosion-resistant alloys. You can count on them to last, even in harsh environments. The precision-machined sealing surfaces prevent leaks, which keeps your site safe and efficient. You also get color-coded unions for easy identification, making your job simpler.
Alienfrac holds certifications from DNV MED, CCS, ABS, and API, so you know you’re getting a product that meets strict industry standards. Many oilfield professionals trust Alienfrac for its reliability and quick installation, which helps reduce downtime and boost productivity.
Tip: If you want a hammer union that combines innovation, durability, and top-level certifications, Alienfrac should be your first choice.
Cameron Hammer Unions
Cameron has built a strong reputation in the oil and gas industry. You often see their hammer unions in high-pressure frac iron applications. Cameron’s products are known for their leak-tight performance, thanks to O-rings that compress within precision-machined grooves.
This design keeps your connections secure, even under extreme conditions.
Here’s a quick look at what sets Cameron Hammer unions apart:
| Feature/Certification | Description |
|---|---|
| Leak-tight Performance | O-rings compress within grooves for a reliable seal. |
| Copper Gaskets | Metal-to-metal seal for high-pressure environments. |
| Wear Resistance | Hardened steel alloys and precision machining for longevity. |
| Corrosion Resistance | Protective coatings and corrosion-resistant alloys. |
| Heat Treatment & Hardness | Controlled heat treatment for durability. |
| Impact Resistance | Engineered to handle mechanical shocks. |
| Compliance with Standards | Meets NACE MR0175/ISO 15156 for sour service. |
You get a comprehensive range of solutions from Cameron, especially if you work with pressures over 10,000 PSI. Their global service network and strong R&D mean you always have support and the latest technology. Many users praise Cameron for quick, secure connections and reliable performance in active drilling regions.
If you need one of the best hammer unions for high-pressure jobs, Cameron is a solid pick.
Dixon Valve Hammer Unions
Dixon Valve brings innovation and reliability to the table. You want a hammer union that won’t let you down, especially in hazardous environments. Dixon Valve hammer unions focus on leak-free connections, which are critical for safety.
They also meet strict safety standards, making them a trusted choice in industries where performance matters most.
Dixon’s commitment to quality means you get unions that work well in both oilfield and food-grade applications. Many users appreciate the peace of mind that comes with Dixon’s focus on safety and efficiency. If you value innovation and reliability, Dixon Valve offers some of the best hammer unions available.
Grover Equipment Hammer Unions
Grover Equipment has earned a loyal following in the oil and gas sector. You get hammer unions designed for rugged use, with a focus on durability and easy maintenance. Grover’s products come in a variety of sizes and pressure ratings, so you can find the right fit for your operation.
Users often mention how simple it is to assemble and disassemble Grover hammer unions. This feature helps you save time during equipment changes or repairs. Grover Equipment’s attention to quality materials and construction means you get a product that stands up to tough conditions.
If you want a dependable hammer union that’s easy to work with, Grover is a smart choice.
National Oilwell Varco (NOV) Hammer Unions
NOV is a name you probably recognize if you work in oil and gas. Their hammer unions are known for high performance and versatility. You can use NOV unions in a wide range of applications, from drilling to fracturing. They offer products that handle both standard and sour gas environments, giving you flexibility on the job.
NOV uses advanced manufacturing techniques and high-quality materials. You get unions that resist corrosion and wear, which means fewer replacements and less downtime. Many oilfield professionals choose NOV for their consistent quality and strong support network.
If you need one of the best hammer unions for demanding operations, NOV is always worth considering.
WeldFit Hammer Unions
WeldFit focuses on delivering hammer unions that combine strength and ease of use. You get products designed for quick installation and removal, which helps you keep your operation running smoothly. WeldFit uses robust materials and precision engineering, so you can trust their unions to handle high-pressure environments.
Many users like WeldFit for its customer service and ability to provide custom solutions. If you have unique requirements or need a fast turnaround, WeldFit can often deliver. Their hammer unions are a great choice when you want reliability and flexibility in your equipment.
Note: When you compare these brands, you’ll see that each offers unique strengths. Alienfrac stands out for its certifications and innovation, while Cameron and NOV lead in high-pressure performance.
Dixon Valve and Grover focus on reliability and ease of use, and WeldFit brings flexibility to the table. No matter your needs, you can find the best hammer unions for your oil and gas operations among these top brands.
Hammer Union Types & Applications
Threaded Hammer Unions
You’ll see threaded hammer unions almost everywhere in oil and gas operations. These unions use a threaded connection, so you can quickly join or disconnect pipes and hoses. You don’t need special tools—just a hammer and a bit of muscle.
Threaded hammer unions work well for temporary setups or when you need to change equipment often. You’ll find them on mud circulation lines, wellhead control systems, and even in high-pressure cleaning setups. Their quick-connect design saves you time and keeps your operation moving.
Butt Weld Hammer Unions
Butt weld hammer unions give you a more permanent connection. You weld these unions directly to the pipe ends, which creates a strong, leak-proof joint. This type works best in places where you want a long-lasting setup and don’t plan to disconnect often.
You’ll see butt weld unions in choke and kill manifolds, hydraulic fracturing equipment, and other high-pressure systems. They handle extreme pressures and harsh chemicals, making them a solid choice for tough jobs.
High-Pressure Applications
Hammer unions shine in high-pressure environments. You need connections that won’t fail when the pressure spikes. In oil and gas, you’ll use hammer unions rated up to 15,000 psi for jobs like fracturing, cementing, and drilling. These unions also show up in mining, chemical manufacturing, and construction.
They stand up to abrasive slurries, corrosive fluids, and heavy vibrations. Here’s where you’ll often find them:
- Wellhead control systems
- Mud circulation lines
- Choke and kill manifolds
- Hydraulic fracturing equipment
- High-pressure concrete pumping
Tip: Always match the pressure rating of your hammer union to your application for maximum safety.
Oilfield Uses
You rely on hammer unions for almost every stage of oilfield work. They connect hoses and pipes in drilling rigs, cementing units, and fracturing spreads. You’ll also see them in transfer lines and BOP control systems.
Alienfrac offers a wide range of hammer unions and high-pressure hoses, like API 7K Cement Hose and API 16C Choke and Kill Hose. These products use advanced technology to handle different fluids and tough operating conditions. You get compatibility, durability, and peace of mind—no matter the job.
Comparison of Best Hammer Unions
Features & Specifications Table
You want to see how the best hammer unions stack up against each other. Here’s a quick table that compares key features and specs across Alienfrac, Cameron, Dixon Valve, Grover Equipment, NOV, and WeldFit. This helps you spot what matters most for your operation.
| Feature/Specification | Alienfrac | Cameron | Dixon Valve | Grover Equipment | NOV | WeldFit |
|---|---|---|---|---|---|---|
| Types of Unions | Fig 100, 200, 206 | Fig 100, 200 | Fig 100, 200 | Fig 100, 200 | Fig 100, 200 | Fig 100, 200 |
| Installation Techniques | Quick-connect, color-coded | O-ring seal | Leak-free, ergonomic | Easy assembly | Advanced machining | Fast install |
| Material Advancements | High-strength steel, corrosion-resistant alloys | Hardened steel | Corrosion-resistant | Durable alloys | Advanced alloys | Robust steel |
| Design Trends | Precision sealing, wing nut | Enhanced grooves | User-friendly | Simple design | Flexible options | Custom solutions |
| Performance Testing | API, DNV, CCS, ABS certified | Stress tested | Safety tested | Quality checked | Industry certified | Custom tested |
| Warranty Options | Comprehensive | Standard | Standard | Standard | Standard | Custom |
| Maintenance Practices | Easy inspection | Regular checks | Simple cleaning | Easy replacement | Routine maintenance | Quick service |
You can see that Alienfrac offers a wide range of certifications and innovative features, making it a top choice for reliability.
Pressure Ratings & Sizes
You need hammer unions that match your job’s demands. Most unions come in sizes from 1 inch to 12 inches. Pressure ratings usually range from 2,000 psi to 20,000 psi. In oil and gas, you often use unions rated between 5,000 and 15,000 psi.
Materials like 4130 steel, 4140 alloy, and 316 stainless steel help these unions handle tough environments. Alienfrac gives you plenty of options, so you can pick the right size and pressure rating for your operation.
Material Quality
Material quality makes a big difference in performance and longevity. High-pressure jobs put stress on threads and seals. Extreme temperatures can cause fatigue. Moisture, salt, and chemicals speed up corrosion. You want unions made from high-strength alloys and corrosion-resistant coatings.
Regular inspection and cleaning help prevent early failure. Alienfrac uses advanced materials and precision machining, so you get unions that last longer and perform better.
If you want the best hammer unions for durability and safety, look for brands with strong certifications and proven material quality.
Choosing the Right Hammer Union
Selection Criteria
You want to make sure you pick the right hammer union for your operation. Here are the main things you should check:
- Pressure Rating: Always choose a union that can handle your system’s maximum pressure, plus a safety margin.
- Temperature Resistance: Pick materials that stand up to the hottest or coldest conditions you expect.
- Ease of Installation and Maintenance: Look for designs that let you connect and disconnect quickly, and make maintenance simple.
- Fluid Compatibility: Make sure the union’s materials and seals work with the fluids you’re moving.
- Corrosion Resistance: Go for unions with protective coatings or corrosion-resistant metals if you work in harsh environments.
- Size and Compatibility: Double-check that the union fits your pipes and matches the thread type.
If you want a union that checks all these boxes, Alienfrac offers tailored solutions with top certifications and a wide range of options.
Matching to Operational Needs
You need to match your hammer union to your job’s demands. Safety factors help protect against sudden pressure changes. Temperature tolerance matters if you work in extreme heat or cold. Fluid compatibility keeps your system running without leaks or failures.
Quality certifications, like API 6A, show you’re getting a reliable product. Cost-effectiveness means looking at the union’s lifespan, not just the price tag.
| Selection Factor | Recommended Practice | Risks of Poor Selection | Verification Method |
|---|---|---|---|
| Pressure Rating | Choose a union rated above the maximum pressure | Leakage, rupture, injury | Review P-T chart, API compliance |
| Fluid Compatibility | Match material to fluid type | Corrosion, joint failure | Material data sheets, NACE specs |
| Installation & Maintenance | Pick smooth threads, easy assembly | Slow install, misalignment | Field testing, user feedback |
| Quality & Certification | Source from certified manufacturers | Inconsistent performance | Certificate of Conformance |
| Temperature Tolerance | Verify operating range | Seal degradation, cracks | Manufacturer specs |
| Cost-Effectiveness | Analyze total cost vs. reliability | Frequent replacements | Lifecycle analysis |
You can trust Alienfrac to help you find the best hammer unions for your specific needs.
Common Mistakes
You want to avoid these mistakes when choosing hammer unions:
- Improper matching of components
- Forgetting to protect threads
- Not training your team on proper handling
Take time to check compatibility and train your crew. You’ll save money and prevent downtime.
Conclusion
You want hammer unions that deliver durability, safety, and easy installation. Alienfrac stands out with top certifications and innovative designs. When you choose, look for:
- Pressure ratings and temperature limits
- Fluid compatibility and corrosion resistance
- Reliable performance in tough conditions
User feedback gives you real-world insights about durability and ease of use. Staying updated on certifications and new designs helps you make smart choices. For trusted solutions and the latest innovations, check out Alienfrac’s website.
FAQ
What are hammer unions used for in oil and gas?
You use hammer unions to connect pipes and hoses. They handle high-pressure jobs like drilling, cementing, and fracturing. These unions keep your connections secure and leak-free.
How do you choose the right hammer union?
You check the pressure rating, size, and material. Make sure the union matches your system and fluid type. Look for certifications and user feedback before you decide.
Can hammer unions handle sour gas applications?
Yes, you can find hammer unions designed for sour gas. These unions use special materials that resist corrosion and meet industry standards for safety.
How do you maintain hammer unions?
You inspect unions regularly. Clean the sealing surfaces and check for wear. Replace damaged parts right away. This keeps your equipment safe and reliable.
